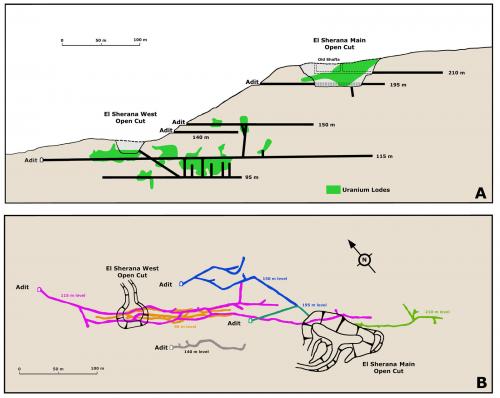

Diagram of the Main Mine Working Diagram A shows a longitudinal section of the mine in terms of the relative positions of all the main adits and open cuts. Diagram B shows the relative positions of the open cuts and the underground workings. The extension of the 195 metre level that lies SW of the main open cut is directly beneath the 210 metre level. All structures have been referenced to height above sea level. These diagrams are based on unpublished reports, UUNL maps, private communications and UUNL company note books. (Author: silvia)

Diagram of the Main Mine Working

Diagram A shows a longitudinal section of the mine in terms of the relative positions of all the main adits and open cuts. Diagram B shows the relative positions of the open cuts and the underground workings. The extension of the 195 metre level that lies SW of the main open cut is directly beneath the 210 metre level. All structures have been referenced to height above sea level. These diagrams are based on unpublished reports, UUNL maps, private communications and UUNL company note books. (Author: silvia)
